class mrpt::opengl::CPointCloudColoured

Overview

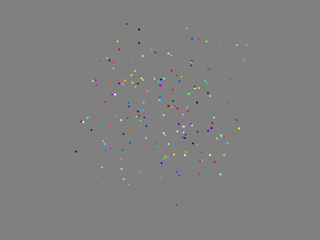

A cloud of points, each one with an individual colour (R,G,B).

The alpha component is shared by all the points and is stored in the base member m_color_A.

To load from a points-map, CPointCloudColoured::loadFromPointsMap().

This class uses smart optimizations while rendering to efficiently draw clouds of millions of points, using octrees.

mrpt::opengl::CPointCloudColoured mrpt::opengl::CPointCloudColoured mrpt::opengl::CPointCloudColoured mrpt::opengl::CPointCloudColoured

See also:

opengl::Scene, opengl::CPointCloud

#include <mrpt/opengl/CPointCloudColoured.h>

class CPointCloudColoured:
    public mrpt::opengl::CRenderizableShaderPoints,
    public mrpt::opengl::COctreePointRenderer,
    public mrpt::opengl::PLY_Importer,
    public mrpt::opengl::PLY_Exporter
{
public:
    // construction

    CPointCloudColoured();

    // methods

    void push_back(float x, float y, float z, float R, float G, float B, float A = 1);
    void insertPoint(const mrpt::math::TPointXYZfRGBAu8& p);
    void resize(size_t N);
    void reserve(size_t N);
    const mrpt::math::TPoint3Df& getPoint3Df(size_t i) const;
    void setPoint(size_t i, const mrpt::math::TPointXYZfRGBAu8& p);
    void setPoint_fast(size_t i, const mrpt::math::TPointXYZfRGBAu8& p);
    void setPoint_fast(size_t i, const float x, const float y, const float z);
    void setPointColor_fast(size_t index, float R, float G, float B, float A = 1);

    void setPointColor_u8_fast(
        size_t index,
        uint8_t r,
        uint8_t g,
        uint8_t b,
        uint8_t a = 0xff
        );

    void getPointColor_fast(size_t index, float& R, float& G, float& B) const;

    void getPointColor_fast(
        size_t index,
        uint8_t& r,
        uint8_t& g,
        uint8_t& b
        ) const;

    mrpt::img::TColor getPointColor(size_t index) const;
    size_t size() const;
    size_t size_unprotected() const;
    bool empty() const;
    void clear();

    template <class POINTSMAP>
    void loadFromPointsMap(const POINTSMAP* themap);

    size_t getActuallyRendered() const;

    void recolorizeByCoordinate(
        const float coord_min,
        const float coord_max,
        const int coord_index = 2,
        const mrpt::img::TColormap color_map = mrpt::img::cmJET
        );

    virtual void onUpdateBuffers_Points();
    void markAllPointsAsNew();
    virtual auto internalBoundingBoxLocal() const;

    void render_subset(
        const bool all,
        const std::vector<size_t>& idxs,
        const float render_area_sqpixels
        ) const;

    virtual void toYAMLMap(mrpt::containers::yaml& propertiesMap) const;
};

Inherited Members

public:
    // structs

    struct OutdatedState;
    struct RenderContext;
    struct State;
    struct TNode;
    struct TRenderQueueElement;

    // methods

    virtual void render(const RenderContext& rc) const = 0;
    virtual void renderUpdateBuffers() const = 0;
    virtual shader_list_t requiredShaders() const;
    virtual void freeOpenGLResources() = 0;
    virtual void onUpdateBuffers_Points() = 0;
    size_t octree_get_node_count() const;
    size_t octree_get_visible_nodes() const;
    void octree_mark_as_outdated();

    void octree_get_graphics_boundingboxes(
        mrpt::opengl::CSetOfObjects& gl_bb,
        const float lines_width = 1,
        const mrpt::img::TColorf& lines_color = mrpt::img::TColorf(1, 1, 1),
        const bool draw_solid_boxes = false
        ) const;

    void octree_debug_dump_tree(std::ostream& o) const;

Methods

void push_back(
    float x,
    float y,
    float z,
    float R,
    float G,
    float B,
    float A = 1
    )

Inserts a new point into the point cloud.

void insertPoint(const mrpt::math::TPointXYZfRGBAu8& p)

inserts a new point

void resize(size_t N)

Set the number of points, with undefined contents.

void reserve(size_t N)

Like STL std::vector’s reserve.

const mrpt::math::TPoint3Df& getPoint3Df(size_t i) const

NOTE: This method is intentionally not protected by the shared_mutex, since it’s called in the inner loops of the octree, which acquires the lock once.

void setPoint(size_t i, const mrpt::math::TPointXYZfRGBAu8& p)

Write an individual point (checks for “i” in the valid range only in Debug).

void setPoint_fast(size_t i, const mrpt::math::TPointXYZfRGBAu8& p)

Like setPoint() but does not check for index out of bounds.

void setPoint_fast(size_t i, const float x, const float y, const float z)

Like setPoint() but does not check for index out of bounds.

void setPointColor_fast(size_t index, float R, float G, float B, float A = 1)

Like setPointColor but without checking for out-of-index erors.

void getPointColor_fast(size_t index, float& R, float& G, float& B) const

Like getPointColor but without checking for out-of-index erors.

size_t size() const

Return the number of points.

size_t size_unprotected() const

Like size(), but without locking the data mutex (internal usage)

void clear()

Erase all the points.

template <class POINTSMAP>
void loadFromPointsMap(const POINTSMAP* themap)

Load the points from any other point map class supported by the adapter mrpt::opengl::PointCloudAdapter.

size_t getActuallyRendered() const

Get the number of elements actually rendered in the last render event.

void recolorizeByCoordinate(
    const float coord_min,
    const float coord_max,
    const int coord_index = 2,
    const mrpt::img::TColormap color_map = mrpt::img::cmJET
    )

Regenerates the color of each point according the one coordinate (coord_index:0,1,2 for X,Y,Z) and the given color map.

virtual void onUpdateBuffers_Points()

Must be implemented in derived classes to update the geometric entities to be drawn in “m_*_buffer” fields.

virtual auto internalBoundingBoxLocal() const

Must be implemented by derived classes to provide the updated bounding box in the object local frame of coordinates.

This will be called only once after each time the derived class reports to notifyChange() that the object geometry changed.

See also:

getBoundingBox(), getBoundingBoxLocal(), getBoundingBoxLocalf()

void render_subset(
    const bool all,
    const std::vector<size_t>& idxs,
    const float render_area_sqpixels
    ) const

Render a subset of points (required by octree renderer)

virtual void toYAMLMap(mrpt::containers::yaml& propertiesMap) const

Used from Scene::asYAML().

(New in MRPT 2.4.2)
